Description

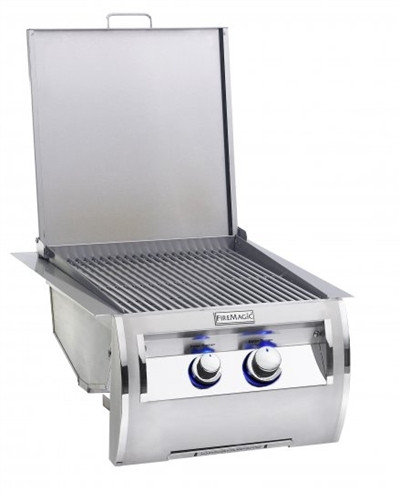

The Fire Magic Diamond Series Double Searing Station Grill/Sideburner complements any Fire Magic barbecue while offering additional versatility and outdoor infrared grilling capabilities. 32,000 BTU's. Features backlit control knobs to match other Diamond series components. Hinged stainless steel grid cover included (shown in open position).
- 304 Grade Stainless Steel Construction
- Stainless Steel Grate
- 24,400 BTU's
- 286 Sq. Inches of Cooking Surface (13" x 22")
- Push Button Electronic Ignition
- Includes Stainless Steel Lid
- Blue LED Back lit Safety Knobs
Cut-out Dimensions: 19" X 18 3/4" X 12 1/4" W x D x H
PLEASE NOTE: Requires 110v to operate back lighting and ignition system and requires transformer part number, 24187-18 when used independent of a Echelon Diamond series grill (NOT included).
Transformer (24187-18) is not required when used with a Fire Magic Echelon grill.
Additional Information
Product Type: |
Side Burner |
Mounting Type: |
Slide in |
Number of Main Burners: |
2 |
Cut Out Width: |
14 |
Cut Out Depth: |
22 3/4 |
Cut Out Height: |
12 |
Product Width: |
14 |
Product Depth: |
22 3/4 |
Product Height: |
12 |
Made In USA: |
No |
Extra Features: |
Removable Cover |
BUT Output: |
24400 |
Lighted: |
External |
